Pump PF SERIES

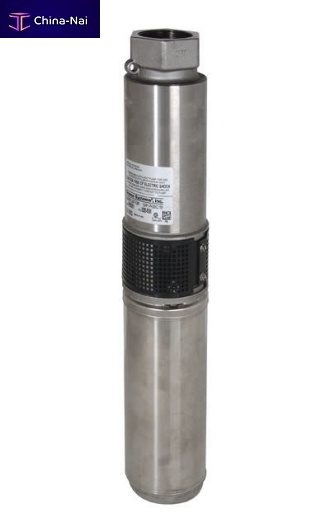

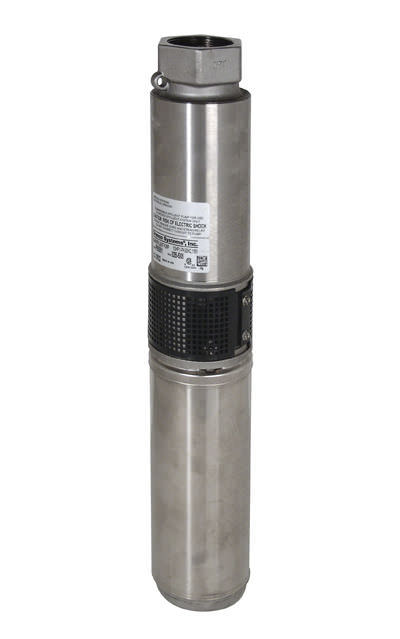

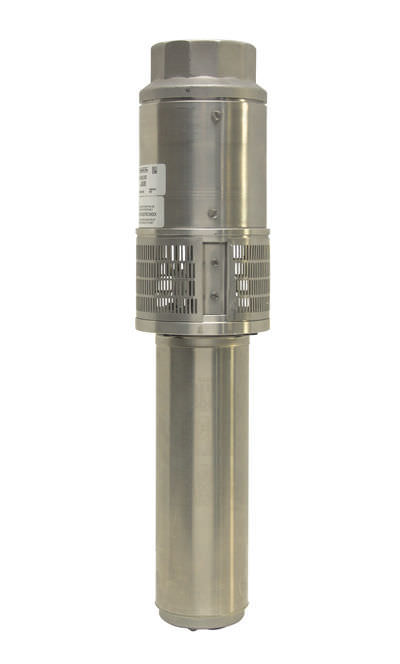

PF Series 4-inch (100-mm) Submersible Effluent Pumps (PF)
PF Series 4-inch (100-mm) Submersible Effluent Pumps are designed to transport screened effluent with low counts of Total Suspended Solids (TSS) from septic tanks, dosing tanks, and pump vaults. They are constructed of lightweight, corrosion-resistant stainless steel and engineered plastics. All PF series 4-inch (100-mm) pumps are field-serviceable and repairable with common tools.
Lightweight
Constructed of corrosion-resistant stainless steel and engineered plastic
For use with a Biotube® Pump Vault or after secondary wastewater treatment
60-Hz and 50-Hz models available
Minimum 24-hour run-dry capability with no deterioration in pump life or performance [excludes 5-hp (3.73 kW) models]
18-inch (3-mm) bypass orifice (patent pending) to ensure flow recirculation for motor cooling and to prevent air bind
Super Stainless motor by Franklin Electric; rated for continuous use
Rated for frequent cycling
Type SOOW 600-V motor cable; suitable for Class I, Division 1 and Division 2 applications
Repairable liquid end (repair kits available)
TRI-SEAL™ floating impeller design on 10, 15, 20, and 30 gpm (0.6, 1.3, and 1.9 L/sec) models; floating stack design on 50 and 75 gpm (3.2 and 4.7 L/sec) models
CSA certified to US and Canadian safety standards
5-year warranty on pump or retrofit liquid end from date of manufacture against defects in materials or workmanship
Manufactured exclusively for Orenco
