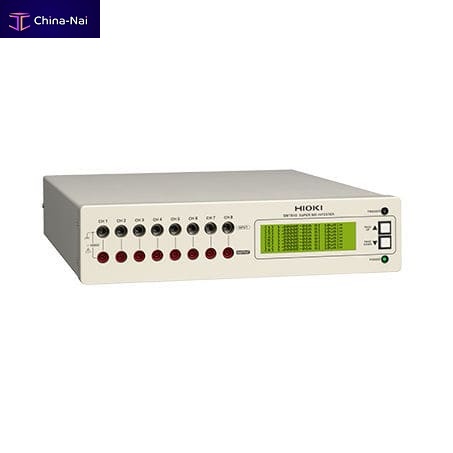

Hipot tester SM7810

SUPER M HiTESTER
SM7810

8-channel 1x10^2 to 1x10^15 Digital Super Megohmmeter for Testing MLCC Leakage Current

Overview
The Hioki SM7810 is an 8-channel 1x10^2 to 1x10^15 insulation resistance tester for testing leak current on multi-layer ceramic capacitors (MLCC).

Key Features
• - Test the leakage current of MLCCs at the fastest speed of 6.8ms simultaneously over 8 channels
• - Conduct high-speed leakage current testing of large-capacity MLCCs in the high current range (1mA)
• - Improve testing reliability using the contact check function
• - Build a flexible system by making best use of the individual settings of each channel

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
Number of channels - 8 channels (parallel and simultaneous measurement)
Applied voltage - Supply voltage from external power source (voltage input terminal on the rear panel)
Measurement range - Current: 1 pA to 1 mA,
Ranges: 100 pA/ 1 nA/ 10 nA/ 100 nA/ 1 µA/ 10 µA/ 100 µA/ 1 mA
Resistance: 1 10^2 to 1 10^15
Measurement speed INDEX typical time - FAST: 6.8 ms, MED: 26.0 ms, SLOW: 100.0 ms, SLOW2: 320.0 ms
Basic measurement accuracy (1µA range, FAST) - Current accuracy: ±(2.0+ (0.5 µA / (Measured current value)) ) %
Resistance accuracy: Current accuracy + Voltage generation accuracy of external power supply
Testing voltage setting - 0.1 V to 1000.0 V (Resolution: 0.1 V)
Contact check - Judges the contact state by comparing the measured capacitance to a reference value
Other functions - Trigger delay, averaging, contact check, jig capacity open correction, Measured value comparison and judgment, jig resistance open correction functions
