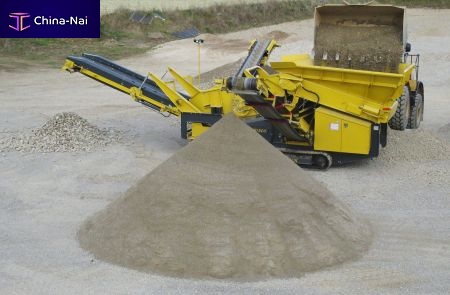

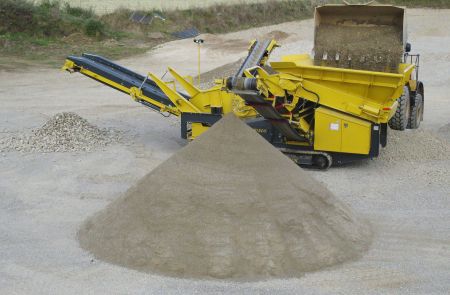

Screen K3

Performance highlights
Unrivaled Performance
Most heavy duty machine in it's range
Standard heavy duty plate apron feeder and hydraulic folding hopper walls
Double deck screen box 2.700 x 1.200 mm (9’ x 4’)
3,24m² screening surface
Capacity up to 250 tonnes / hour
Available in full hybrid version
Feed hopper 3,50 m (4,6 yard)
Standard 2 speed tracks
Low emission engine
Lowest fuel consumption in the industry
Large range of screen meshes, fingers, punched plate & grizzly decks available
2 speed track drive
Extensive option list to configure to your application
Specifications
Transport dimensions
Working dimensions
Weight - 17 t (18 sT) -
Length - 9.800 mm (32’2”) - 11.968 mm (38’11”)
Height - 3.120 mm (10’3”) - 3.400 mm (11’2”)
Width - 2.550 mm (8’4”) - 13.330 mm (43’9”)
