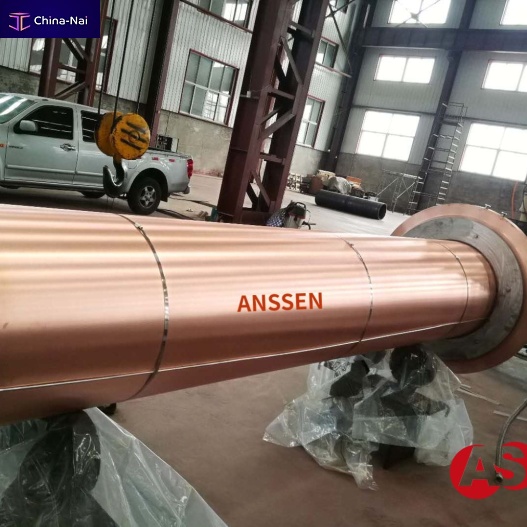

Crystallizer ESR

ESR Crystallizer



ESR key words:

ESR Crystallizer, Electro Slag ESR Electroslag Remelting Furnace, Electroslag Remelting Crystallizer, Copper insert tube

ESR Copper insert tube, ESR Copper tube



Purpose:
-Electroslag remelting utilize resistance as heat source to be a measure of smelting, which produced when current go through electroslag. The main purpose is to purifty metals, and gain well-distributed and dense crystal structure of ingot.



Characteristic:

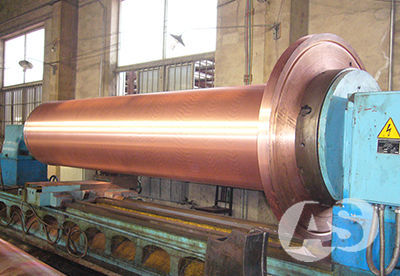

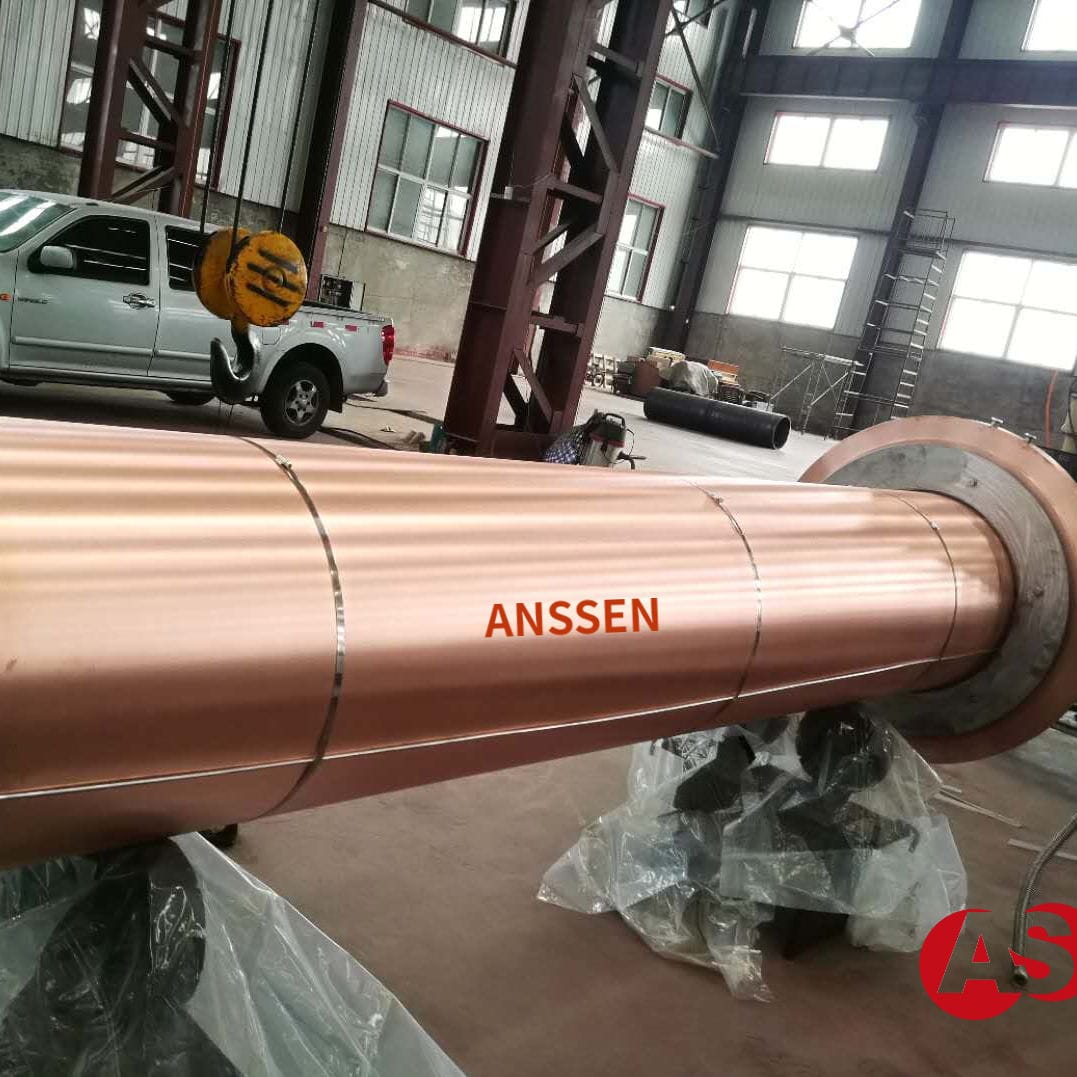

- Copper tube adopt forged seamless copper tube or coiling weld copper plate.
- Flange adopts CuCrZr alloy which has high thermal conductivity and thermostability.
- The safe and reliable welding technology can adapt to high-strength and high temperature working condition.



Technical parameters:
- Chemical composition: Cu99.93%
- Welding line flaw detection standard corresponds to GB3323-87-


Presure test:
Hydraulic pressure: 1.5MP a
Pressurize: 30mins
No leakage phenomenon
Electric conductivity: 94%IACS



Range of products:
- Forging seamless straight pipe and taper pipe
- Forging area flange straight pipe and taper
- Forging straight pipe and taper pipe to weld flange
- Coiling copper plate to weld straight pipe and taper pipe
