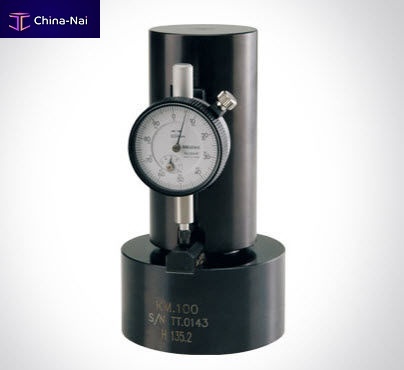

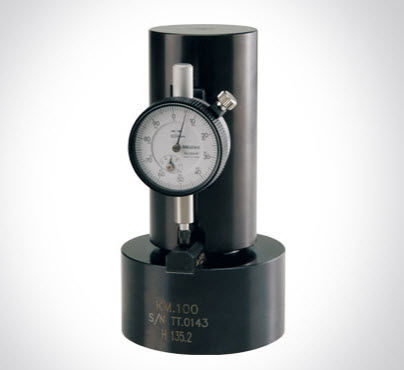

Gauging KM100

The terminal Unit Gauging KM100 is an instrument conceived for the setting up of the gauging height of the Bench Terminal Units and for those installed on the automatic machines.The gauging height is the distance between the miniapplicator hooking base and the ram’s bottom dead centre.
You have to gauge the Unit with regard to the kind of miniapplicator you have to install on it.
For a KM Corporate standard miniapplicator (gauging height equal to 135.2 mm) you have to use the instrument coded KM100.For AMP standard miniapplicators (gauging height equal to 135.8), you have to use the instrument coded KM101.
The gauging data are reported in the technical features of the miniapplicator.
