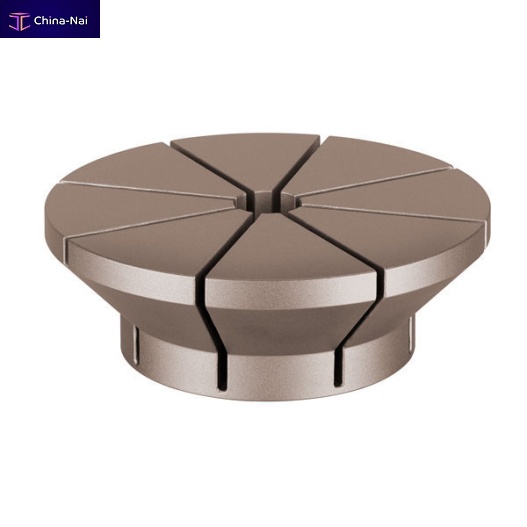

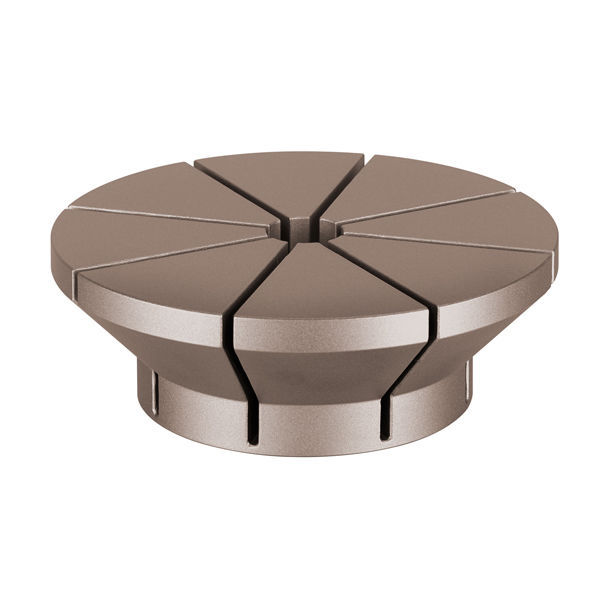

Collet 6375Z-149

Collet attachment dia. 149

Material: High-strength aluminium
suitable for collet 6375M / 6375H


Design:

The collet attachment with diameter 149 mm fits the collet elements order no. 533281 and order no. 545582. The collet attachment is made of anodised, high-strength aluminium.
Application:

The collet attachment is fastened to the main element by just one centrically applied screw and is therefore quickly replaced. The workpiece contour is milled into the collet attachment with a minimum clamping depth of 2 mm. Because the clamping force is evenly applied to the component in a radial direction, the counterplate is clamped warp-free.
The collet attachment can be milled off to a height of H1, allowing new workpiece contours to be introduced.
The maximum workpiece diameter is 140 mm.
