Tablet press

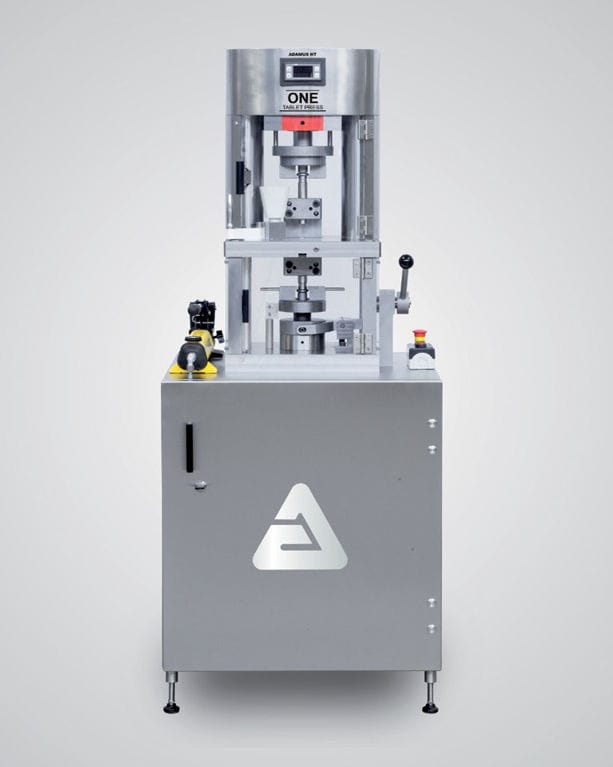

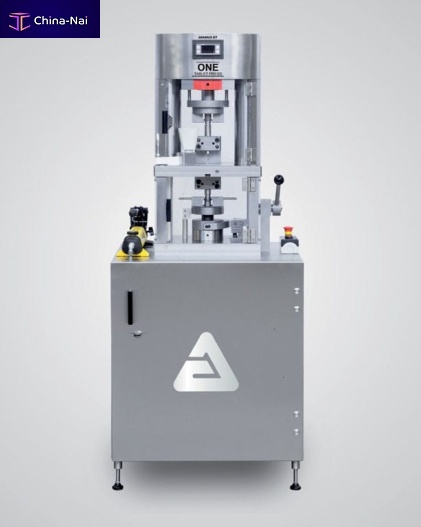

The One Station Tablet Press

The One Station Tablet Press is a perfect solution for research and laboratory purposes where small amounts of tablets are needed without loss of time and expensive powders.

Benefits:

•transparent shields for safety reasons
•tablet ejection rod
•stainless steel frame and parts
•digital display indicating:
- compression force
- ejecting force
•hydraulic pressure gauge
•easy cleaning of the unit after using granulate
•control of tablet parameters
•easy access to the compression chamber
•easy transport

Technical features:

•maximum pressing force: up to 100 kN
•maximum depth of the filling: 20 mm
•maximum tablet diameter: 25 mm
•Supports standards „EUB”, „EUD” (H=133.6)
•Digital controller for compression pressure and upper punch withdrawal for tablet ejection
•Power supply 230V 50Hz/110/60 Hz
•Dimensions: 650x700x1660 mm (with table)
•Available with dedicated table
