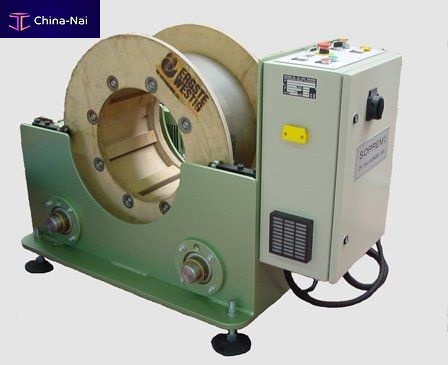

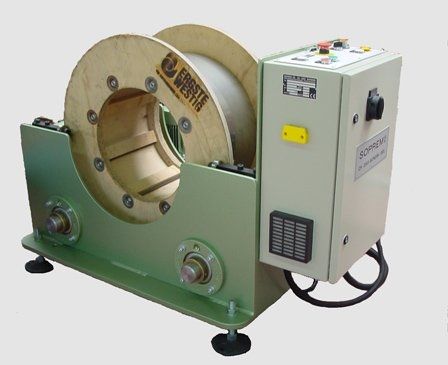

Winder

Technical specifications
Spools outer- 1000 mm
Spool weight 1000 kg
Spool width 350 - 600 mm
Spool speed 0 - 26 rpm

Technical equipment
- Spool carrier and drive on 4 gummed supporting rolls, laterally adjustable, on 2 shafts
- Spool loading and unloading with crane or fork lift from the top
- 2 shaft driven with continuous adjustable drive. Drive of the spools over gummed supporting rolls at the front side of the spool side panels.
- Loop control system with scanning arm and lateral freerunning converter roller, for continuous speed control
- Shaft bearings to be additionally positioned at the spool side panels avoid tumbling of the spools with high speed ranges

Options
- Other models for larger or smaller spools
- Quicker speed ranges
- Adapted loop control systems for special applications
- Construction without drive, with adjustable primary retarder
