Electronic level

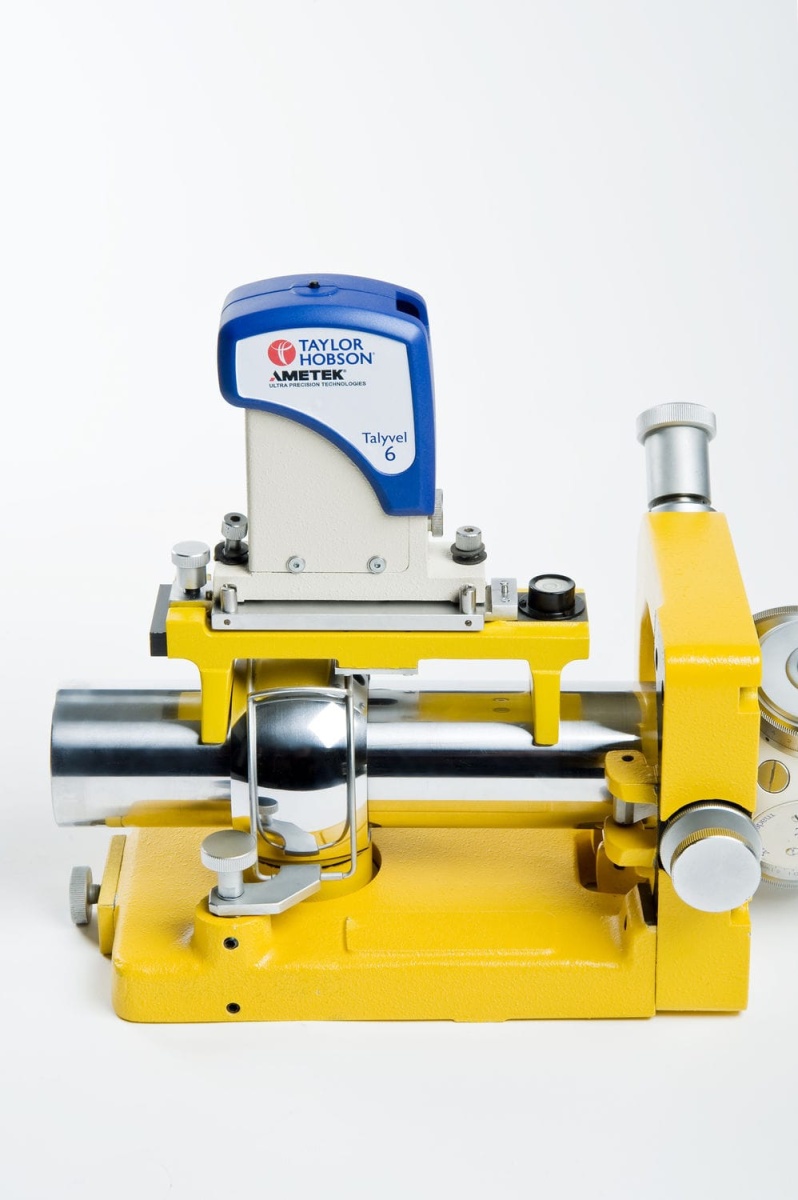

Taylor Hobson Talyvel6 Flatness, Straightness, Parallelism Measurement Instrument

Taylor Hobson’s Talyvel 6 wireless instrument / tool is used for straightness, level, twist, angle, parallelism and surface flatness measurement. Talyvel 6 can be used with the Taylor Hobson optical analysis software package (conforming to international standards BS817, DIN876, ISO8512) to measure the single axis straightness & twist on machine tool rails. This equipment can check level within 0.2 seconds accurately.

The dual axis straightness measurement can be inspection by Taylor Hobson Autocollimator.

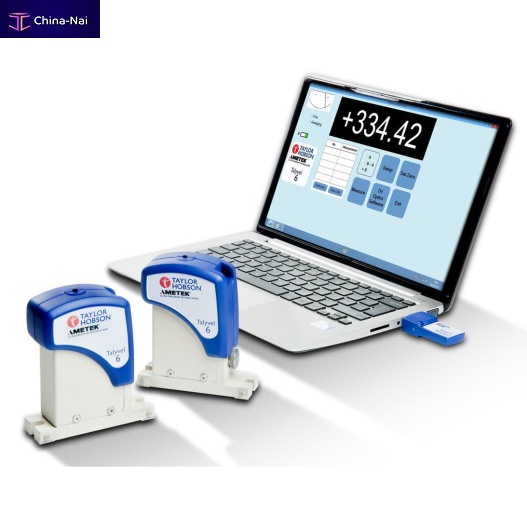

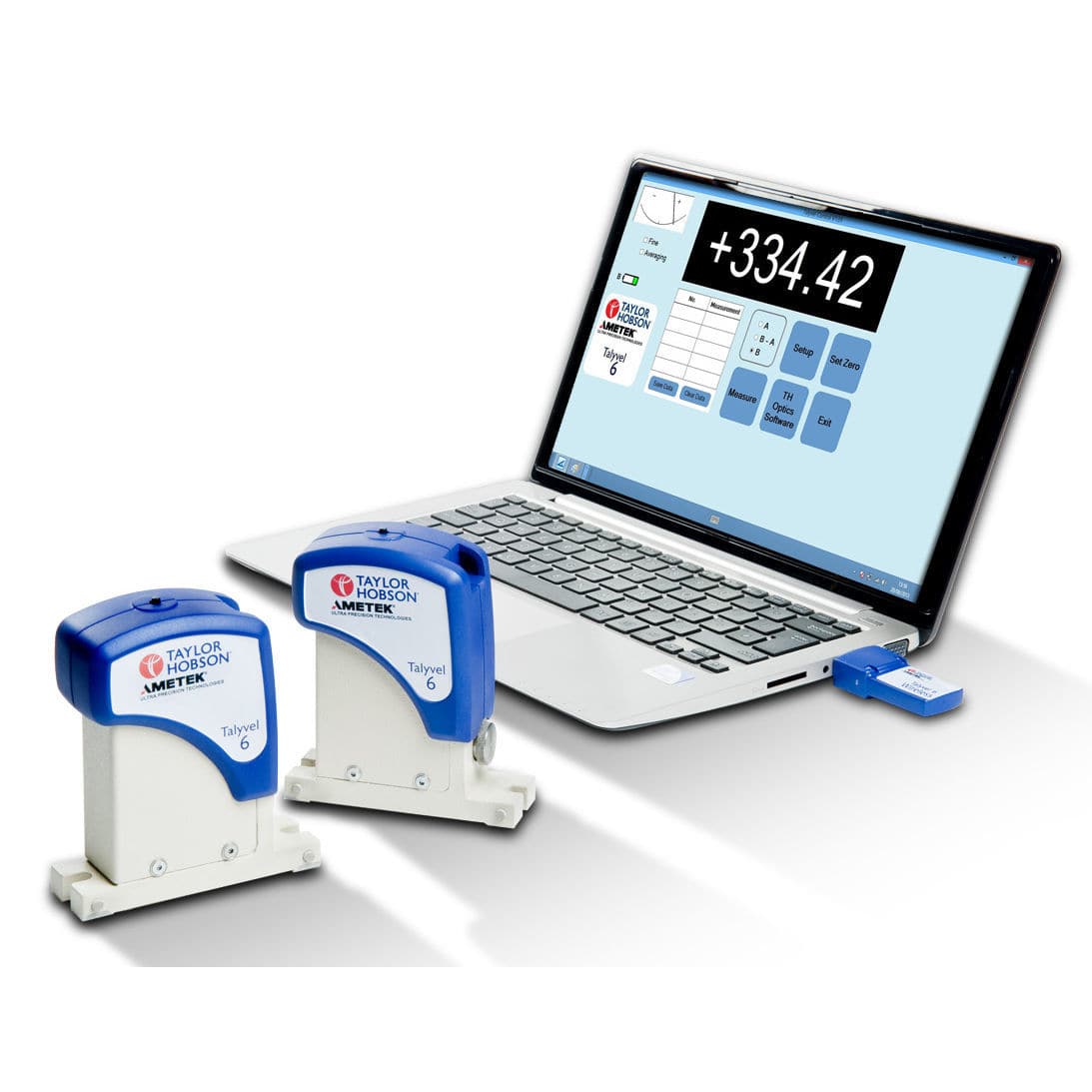

Taylor Hobson's Talyvel Electronic Level systems provide versatile and precise measurement of angle, level, flatness and straightness. The Talyvel 6 uses a pendulum transducer and interfaces directly to a touchscreen computer to combine exceptionally high accuracy, stability and repeatability with fast response and operational convenience.

Industry:
Marine, Bearings, Civil engineering, Astronomical Telescopes.

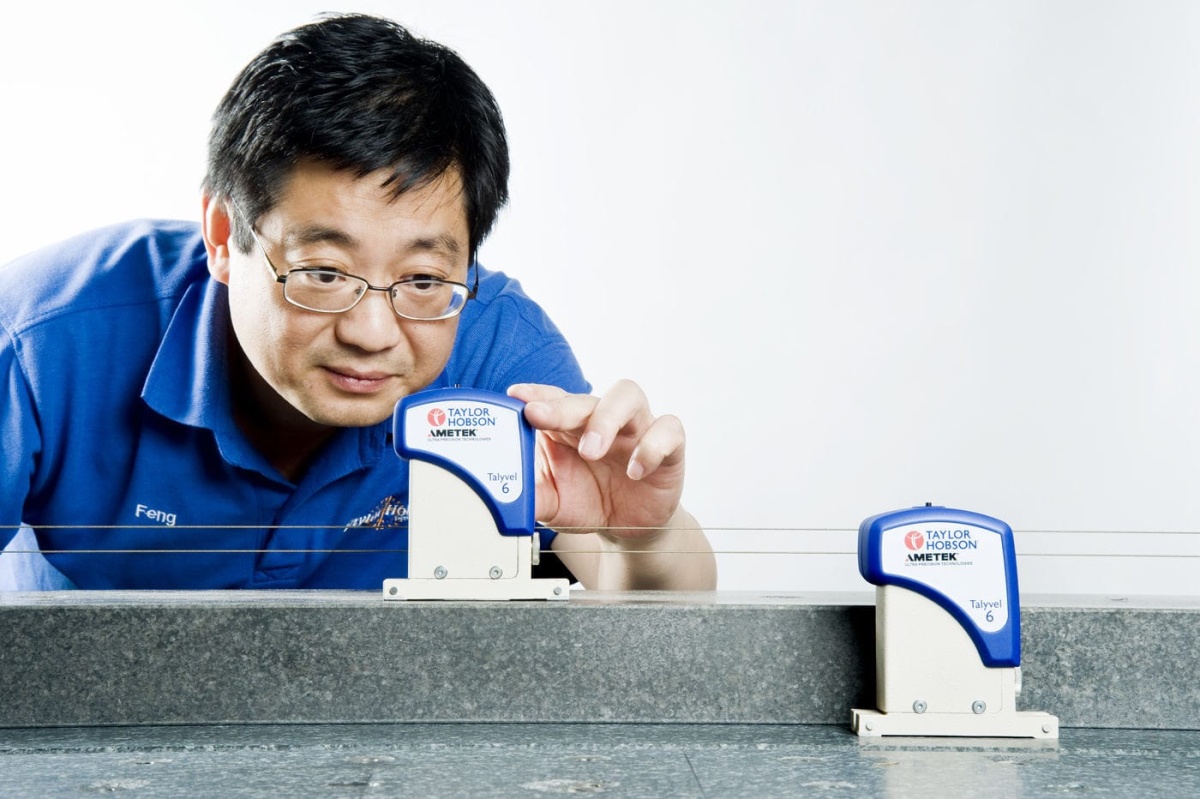

• Flatness measurement of Granite and cast-iron Surface tables
• Straightness, parallelism, squareness, twist, flatness measurement on machine tools rails.
• Checking the level (the relative deflections in buildings) in the civil engineering and used in the production and assembly of precision machinery (machine tool bed level and to gravity)
• Measuring the twist, alignment, parallelism in marine engineering industry

Applications include straightness measurement of machine tool guide ways, flatness of surface tables or absolute level of structural supports, Talyvel 6 can also function as a comparator to detect departures from a preset level and non level attitude.
