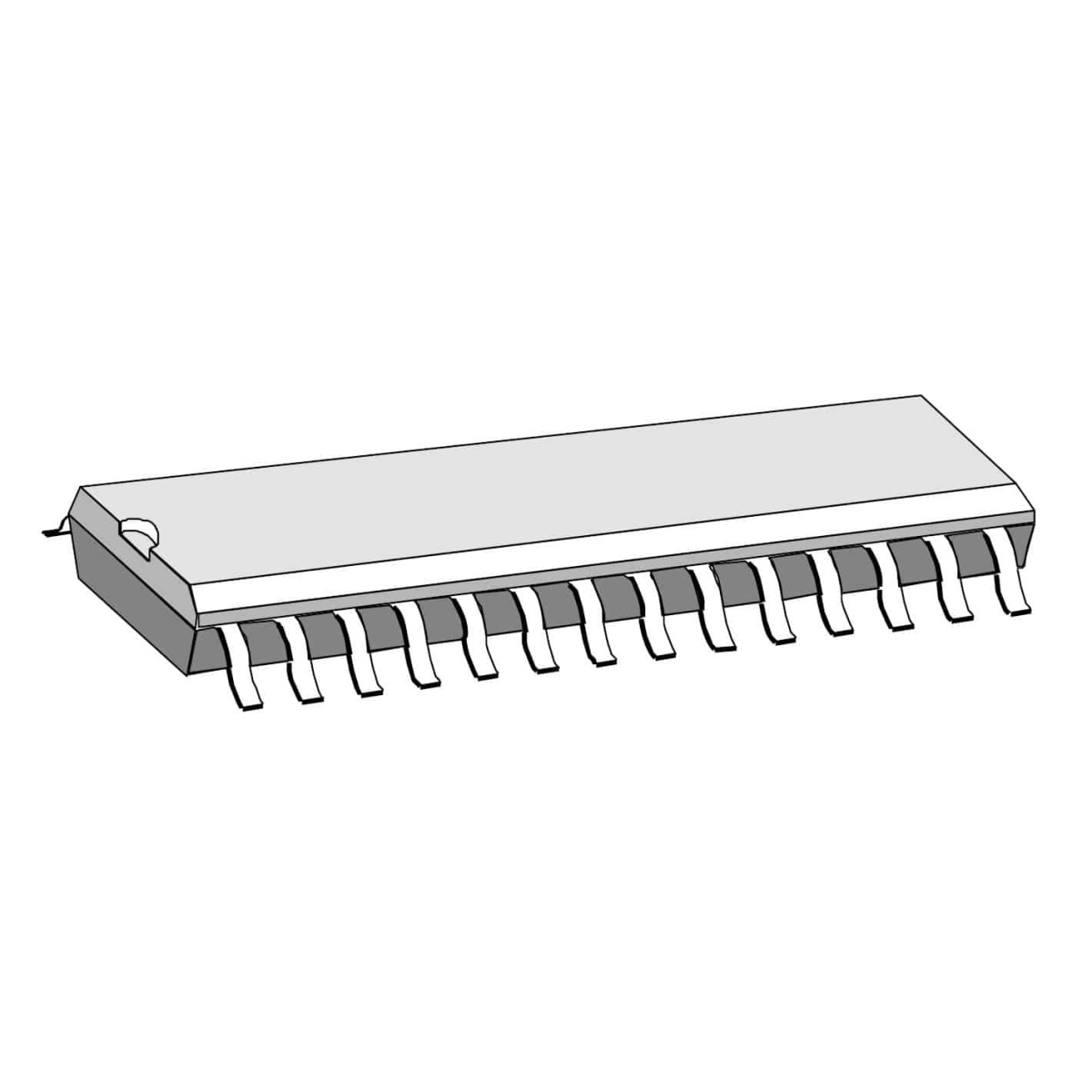

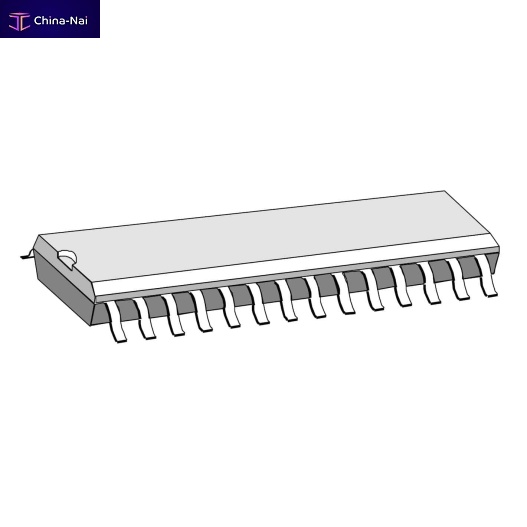

Microcontroller iC-NG

Applications
Absolute and incremental angle interpolation from orthogonal sinusoidal input signals
Interpolating interface for MR sensors and optical analog encoders
Features
Real-time interpolator with programmable resolution of up to 256 steps/period
Calibration features permit adaption of disorted sine/cosine signals
Incremental A QUAD B or absolute outputs, output frequency
Fast 24-bit multiturn counting on chip
Programmable index position
Input amplifiers lead out completely
8-bit µP interface
Serial EEPROM port to load setup
Built-in clock oscillator
Interrupt controller and error monitoring
TTL-/CMOS-compatible outputs
