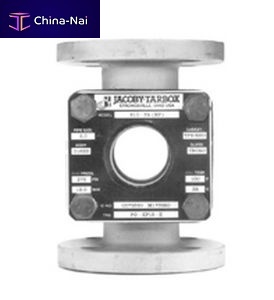

Sight glass

Jacoby-Tarbox's full ASME rated line of flanged bullseye sight flows have been engineered per the design criteria of the ASME B31.1 & 31.3 Power & Chemical Piping Codes, incorporating all ASTM listed materials for the pressure retaining components: bodies, fasteners, and retainers. This standardselling group of features include full ASME code compliance with regards to yield criteria, materials, and pressure/temperature ratings.

STANDARD FEATURES:Connections per ASME B16.5, B16.24, and B16.1 Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications. Tempered borosilicate glass Units are machined and assembled in an ISO-9001 fUlly automated facility, Welled components meet NACE MR-01-75 requirements Stainless steel engraved identification faceplate

FULL·VIEW VISIBILITY: Pipeline view is maximized, in most cases with a diameter that is equal to the nominal pipe size, allowing 100% unobstructed process observation of gases, solids, solutions, and slurries.
