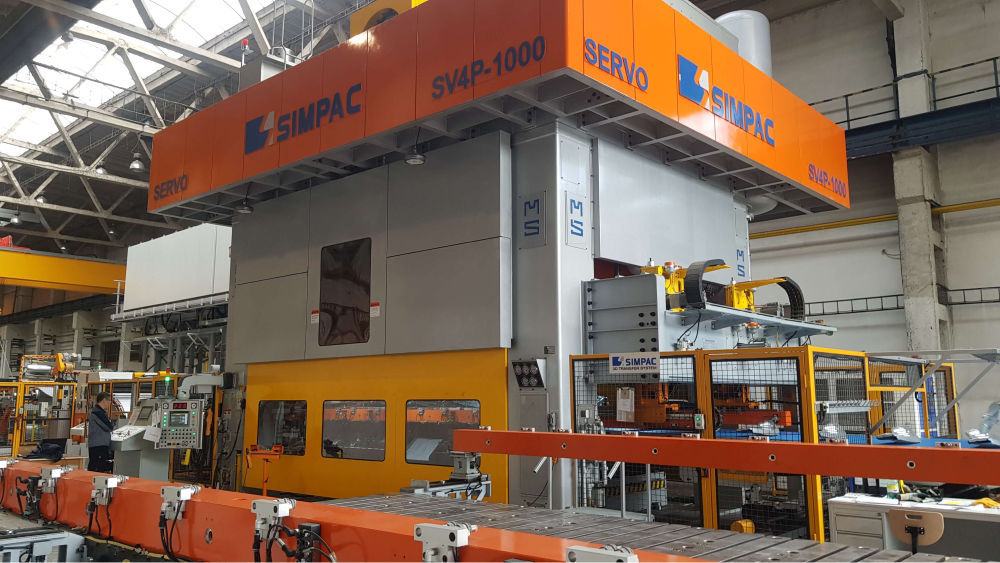

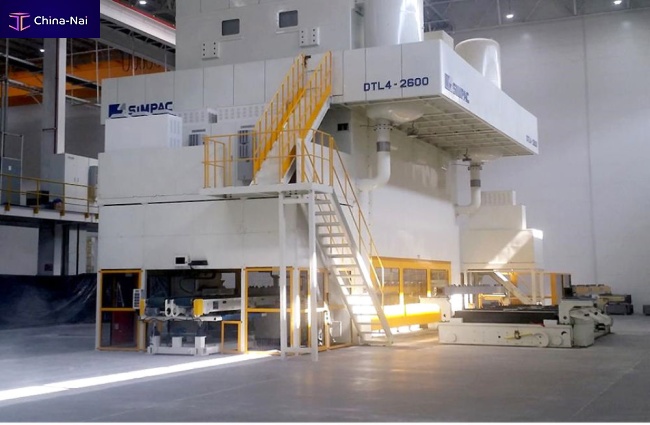

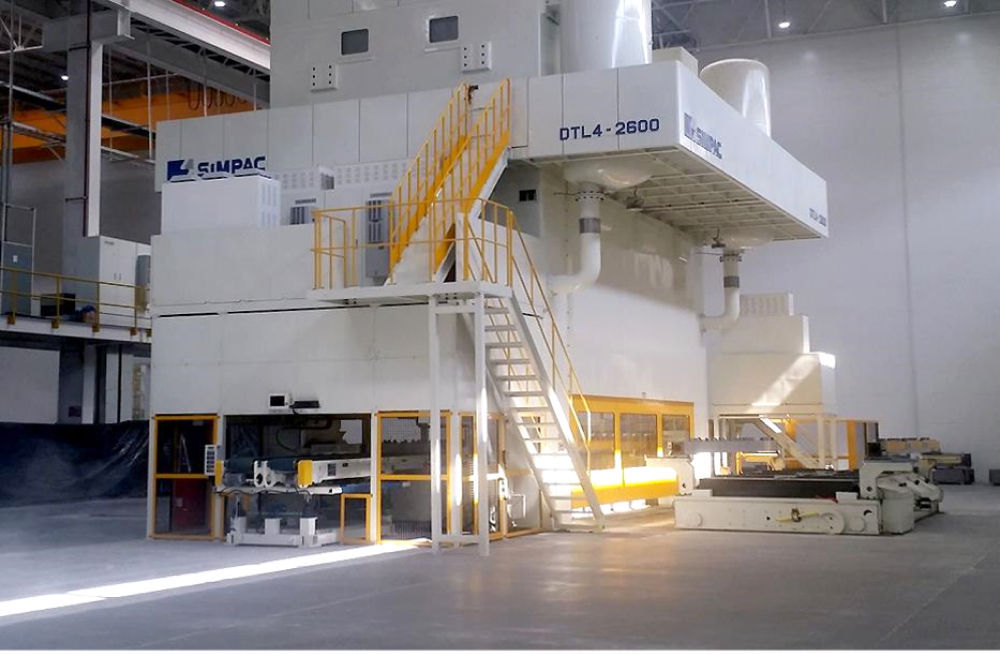

Transfer line

Be advantageous in the production line of automobile parts
High productivity compared to Robots line.
Coil Line and De-stacker can be applied to FOL line Economical effect maximized by low cost per unit parts.

Description
SIMPAC Transfer System with PLC-based interface allows operators to run parts as wide as the press window.

Modules move offline quickly and easily, providing access for die maintenance and change over.

Technical Specifications

Bolster Dimensions
mm
Min 6500x2300
Max 7500x2800

Transfer spm
spm
20-30

Type
mm
7 axis servo

X motor
kw
15

Y motor
kw
15

Z motor
kw
15

Feed distance
mm
1500

Clamp stroke
mm
600

Lift stroke
mm
Max 350

Feed bar size
mm
AL 210x210

Feed weight
kg
Max 250

Required power
kw
120
