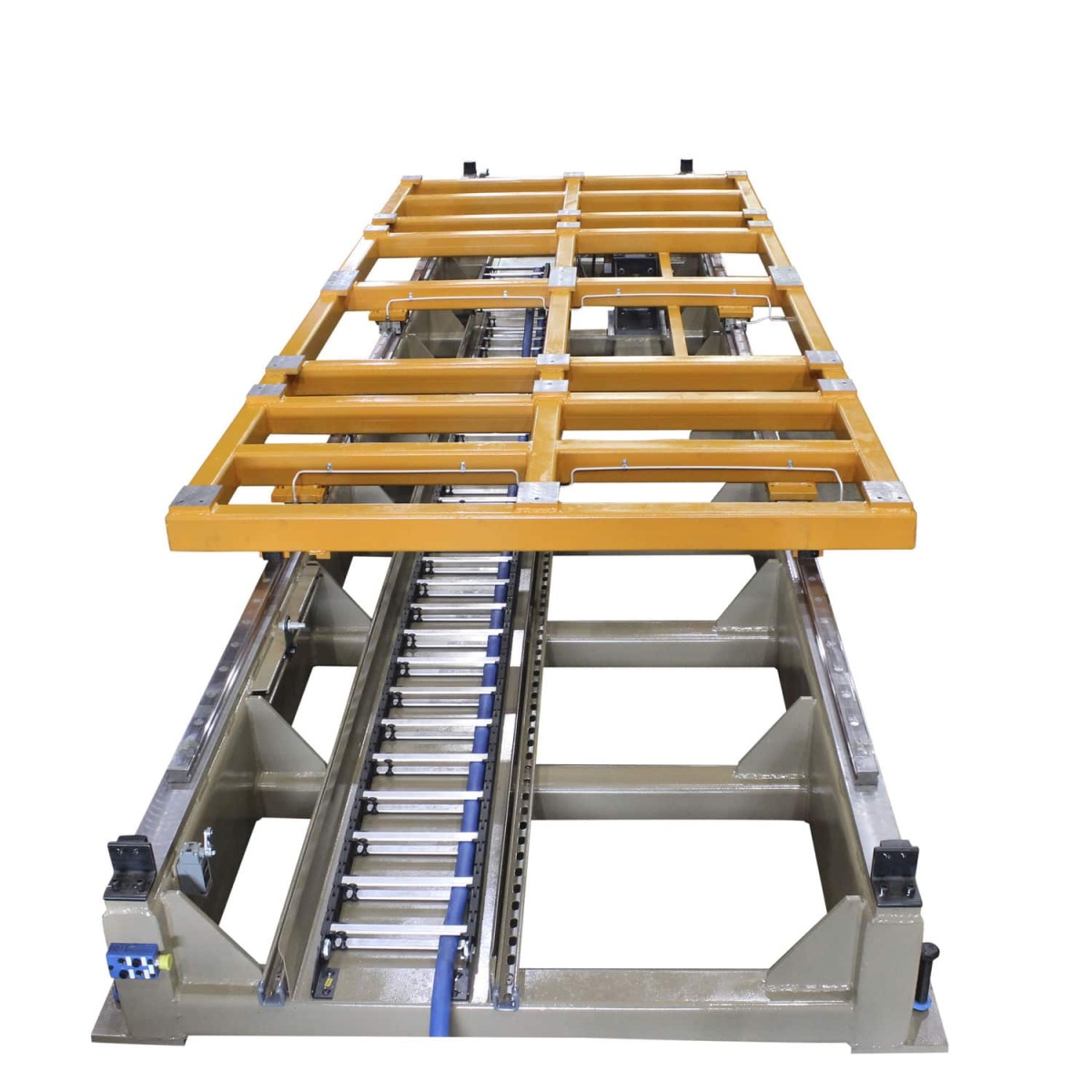

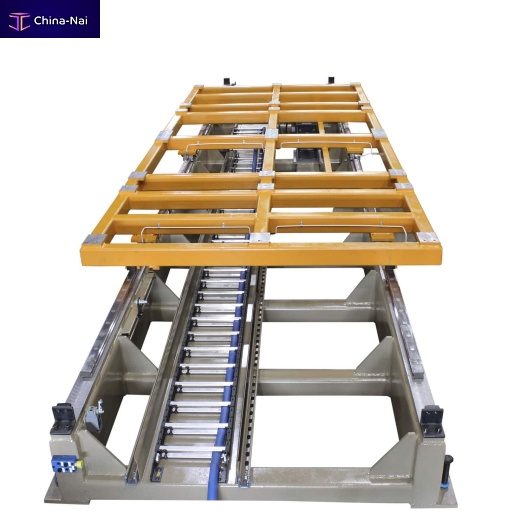

Tray transfer system

Motion Index Drives’ Tool Tray Transfer System combines excellent accuracy using the highest precision guard rails, rack and pinion system and closed loop motor control system with high index speed capability with versatility to meet any automation challenge.
KEY BENEFITS
Standard accuracy – DIN 6 on gear rack +/-0.0003/ft
Rack is hardened and ground – S.F. of rack 4.58:1
Low backlash Gear Reducer
Total axis load moving over 100,000 lbs
(slide frame and fixture )
Transfer unit is fabricated and machined welded
steel construction
Transfer carriage manufactured to mount customer tooling tray and fixtures
Localized pads machined for mounting of tooling tray
Faster Transfer Times
Extremely high accuracy through the use of either AC motor with absolute encoder or servo motor control.
