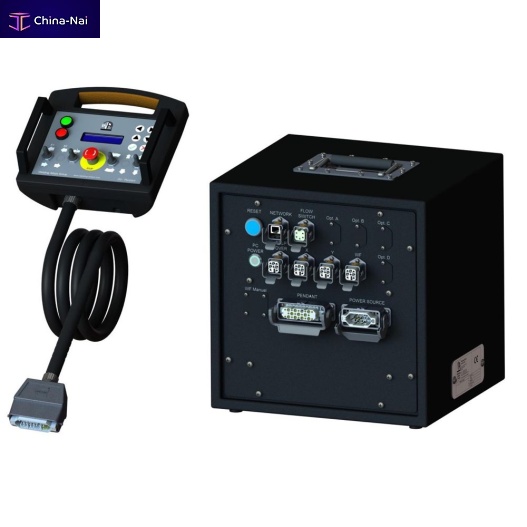

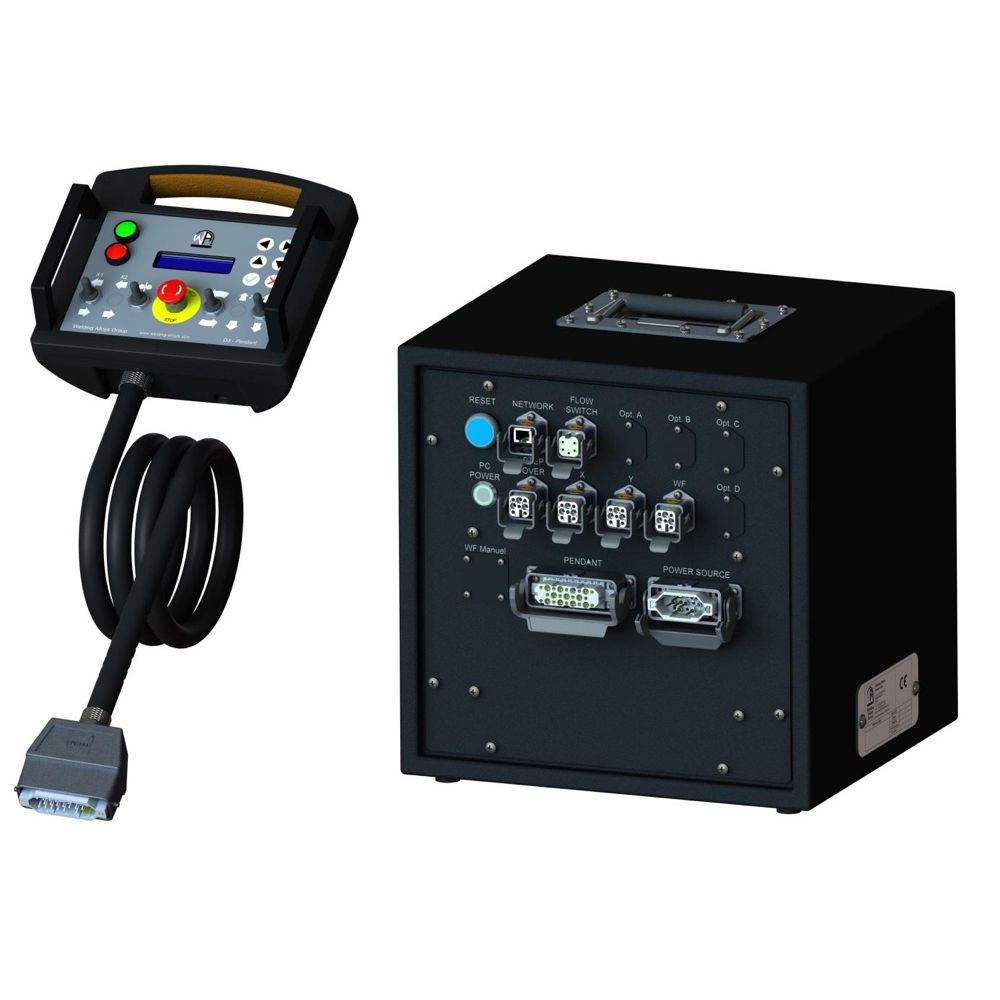

Control panel D3

Small but powerful

The D3 Pendant control box is the brain that controls most of our modular and portable welding equipment. Small, light and easy to use, it has everything needed to perfectly execute even the most precise welds. With its wired pendant, you can be as far away or as close as possible to the welding pool whilst safely maintaining control, of any movements of the welding gun, in real time. The control system has been specially designed with the operator in mind; full safety equipment such as gloves, a helmet and a jacket can be worn and the toggle switches and buttons can still be easily located and actuated by the user.

Characteristics
D3 control system
Multiple weld patterns: oscillating beads, stringer beads, square waves, chevron shape and spiral welding
Standard features:
Control of three 48VDC motors with encoder feedback
Control the weld start/stop and welding voltage with tension and current feedback of the welding power source
One switch input and one flow switch input
Network connection for remote troubleshooting or upgrades
Additional features:
Control of a 115VDC motor with encoder feedback
Control of an inverter with encoder feedback
Control of a solenoid valve or solenoid valve integrated
Link between multiple D3-pendants for common emergency stop
Auxiliary contact
Connection of an auxiliary manual welding gun and wire feed

Benefits
Repeatable programming
High quality weld deposits
High productivity in manufacturing
Adaptable to any workshop size and onsite jobs
