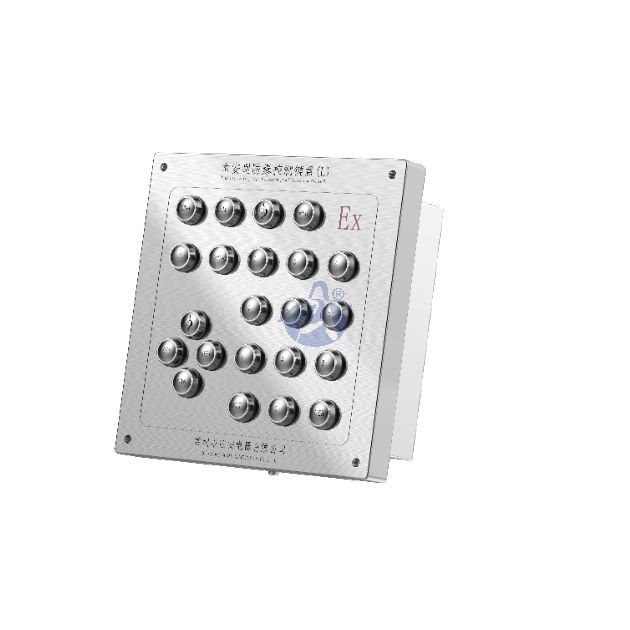

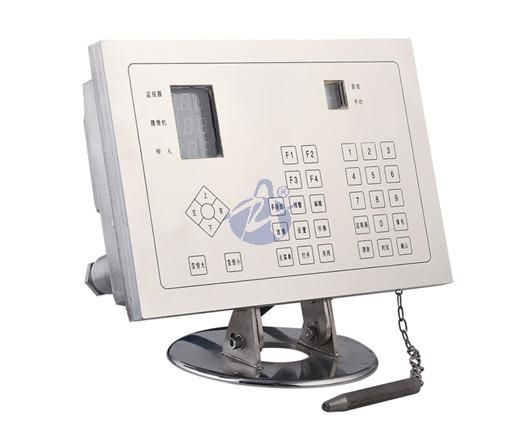

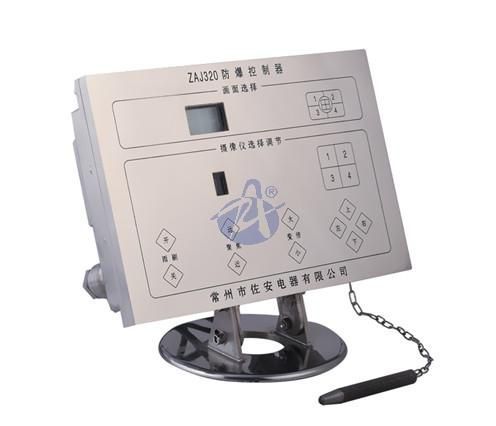

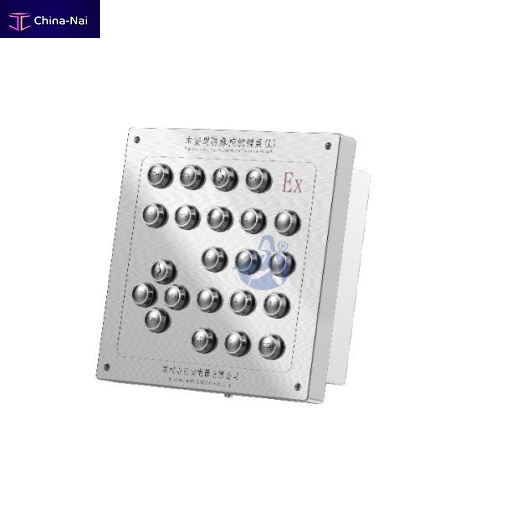

Control system ZAJ320

ZAJ320
· Fit for gas zone 1, zone 2;
· Fit for dust zone 21, 22;
· IP66;
· Control camera, pan& tilt

Mechanical

Housing
Stainless steel 304 or 316L

IP
IP66

Cable thread hole
6pcs G3/4 or NPT3/4

Electrical

Voltage
AC85VAC265V or DC24Vor AC24V

Power
50W

Surge Protect
Optional, TVS6000V surge protect

Ambient
Ambient temperature
-25 to +60 / -45 to +80

Air pressure
80Kpa to 106Kpa

Relative Humidity
95% (no condensation)

Communication

Communication
RS485

485 Communication
Support Pelco-D, Pelco-P

Communicate Rate
2400 to 19200bps

Video Input
4-Channel

Video Output
1-Channel

General
Cable
integrated cable

Size
300*170*255mm

Weight
15kg

Mounted
desk
