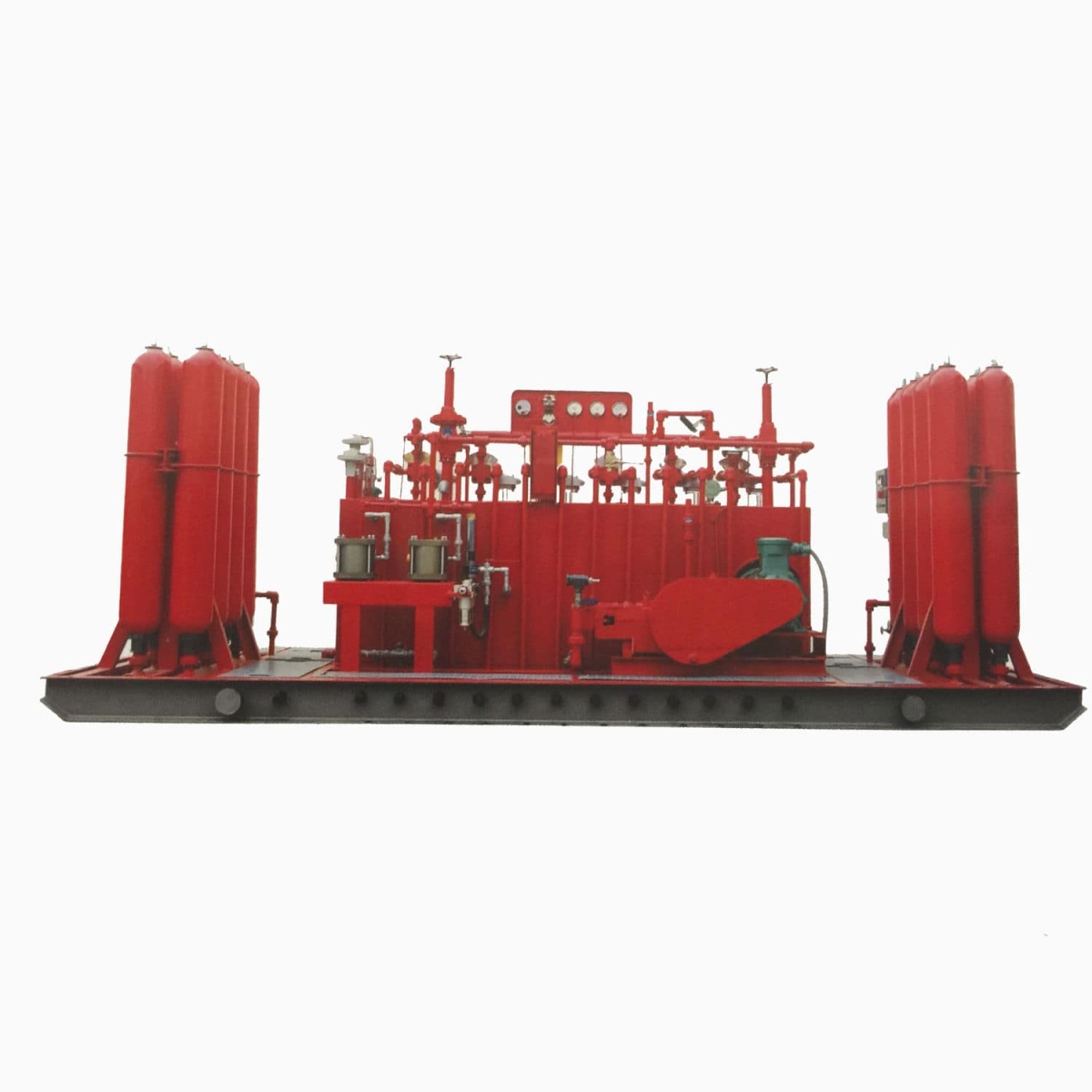

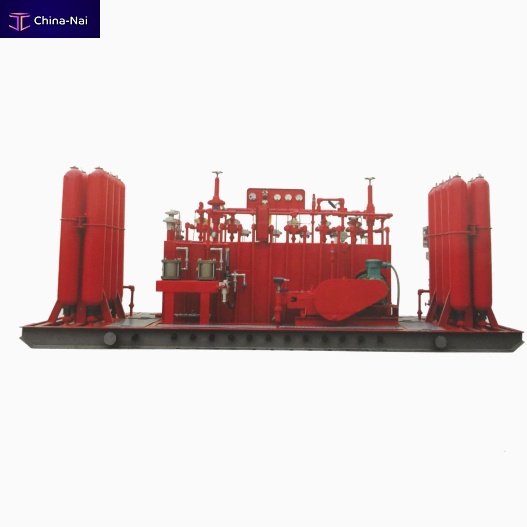

Control unit

1. General Introduction
BOP Control Unit (Hereinafter referred to as hydraulic control unit) is a necessary equipment for controlling wellhead BOP,Hydraulic choke & kill valve, and drilling & workover operation.

Two types of BOP Control Units are offered by us: One is pneumatic control hydraulic device .The hydraulic control device can be remote controlled with driller's console, to achieve the purpose of switching the BOP, which is commonly used in drilling operation; The other one is manual operation, which is suitable for drilling or work-over operation.
2. Model Description

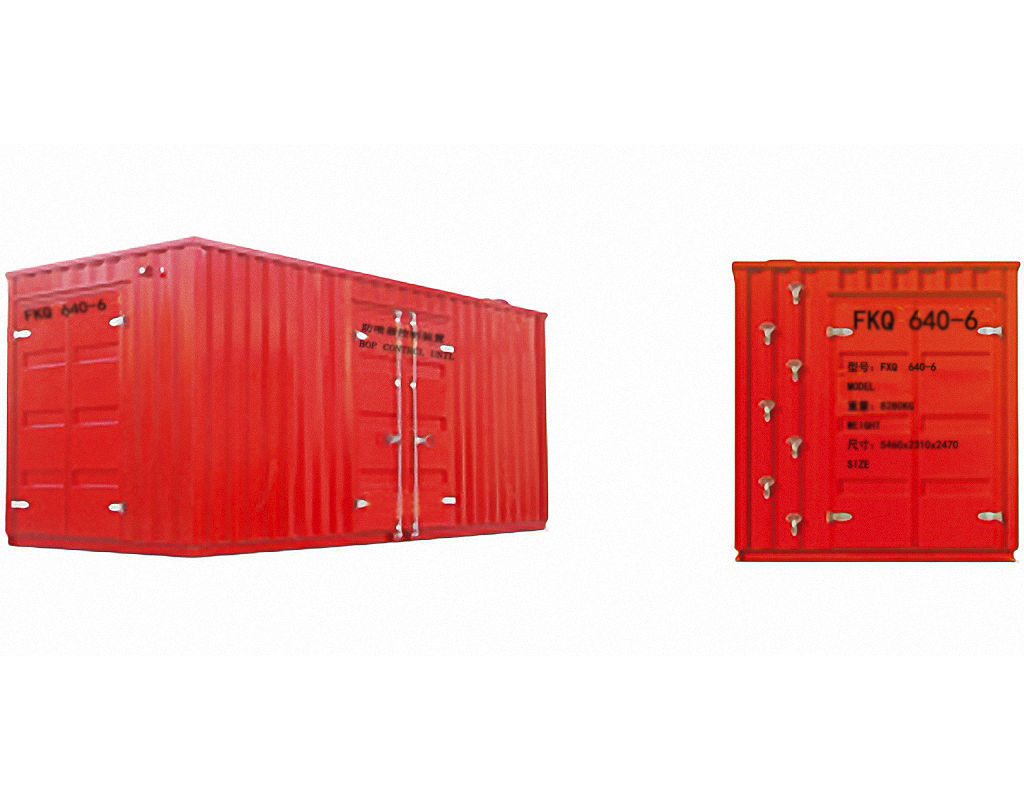

Model code of BOP Control Unit as below, as example of FKQ640-6

3.Main technical parameters

Nominal working pressure 21 Mpa /3000 psi
Regulation range0~14 Mpa / 0~2000 psi
Nitrogen charging pressure of accumulator7±0.7 Mpa /1000±100psi
Setting range of pressure controller18.9~21 Mpa / 2700~3000psi
Setting range of liquid-gas switch18.9~21 Mpa/ 2700~3000psi
Air supply pressure: 0.65~0.8 Mpa / 93~115psi
power380±19V / 50Hz
