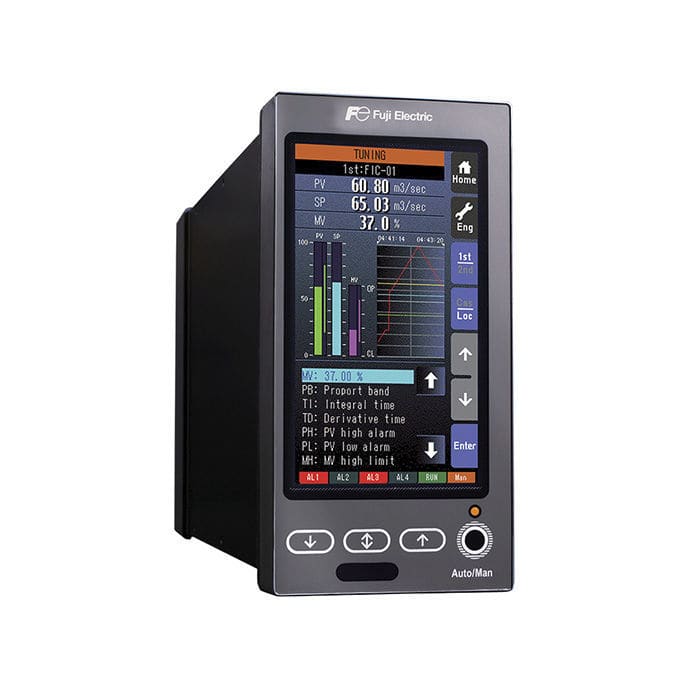

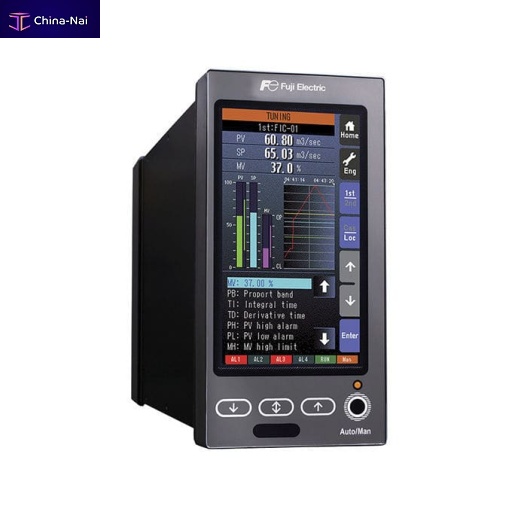

Regulator PSC

Multi-fonction and programmable PID controller :

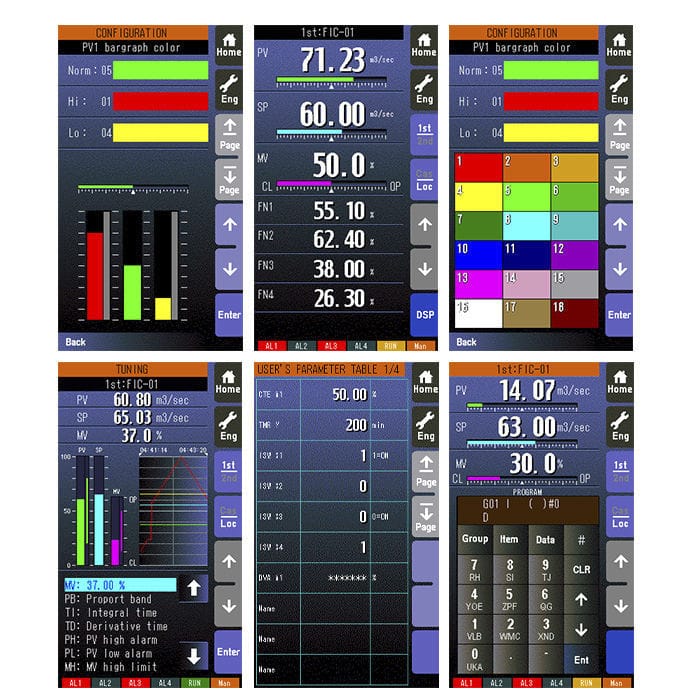

Highly visible color graphic LCD
IP 55 front panel
Intuitive touch panel operation

Input :
2 universal input
DC current (including 2 wire transmitter)
Thermocouple
Potentiometer
RTD (PT100, JPt 100...)
4 DC input (1-5V)
5 discrete/pulse input
1 high speed pulse input (with sensor excitation)

Output:
2 DC current (4-20 mA)
2 DC voltage (1-5V)
5 relay or photo MOS contact
1 RUN relay contact

Applications
CHEMICAL INJECTION CONTROL
The SC100 controls two flow loops for water and injected chemical. the chemical flow is controlled in a constant ratio against the water flow.chemical injection control
Other signals from pH and conductivity analyzers can be monitored at once.

REACTOR TEMPERATOR CONTROL
The reactor temperature control loop is connected in cascade to the hot water control loop in the hot water tank.Application reactor temperature control
The secondary loop controller controls the valves for hot water and steam.
