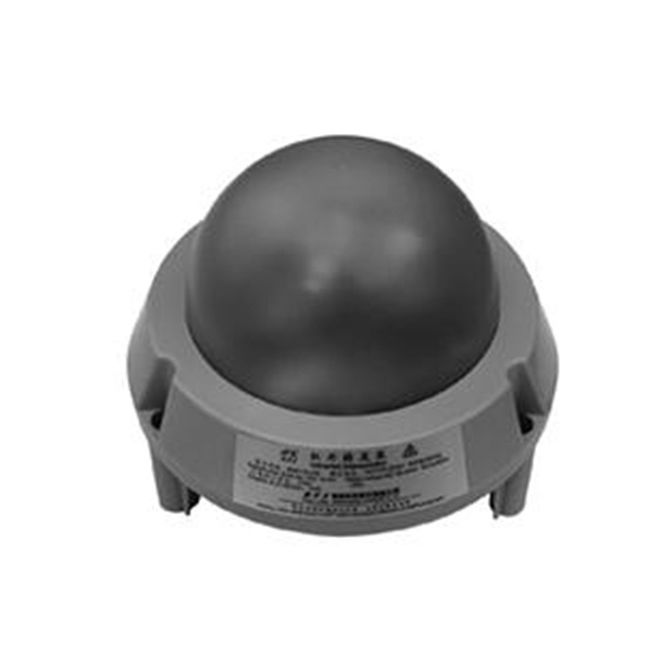

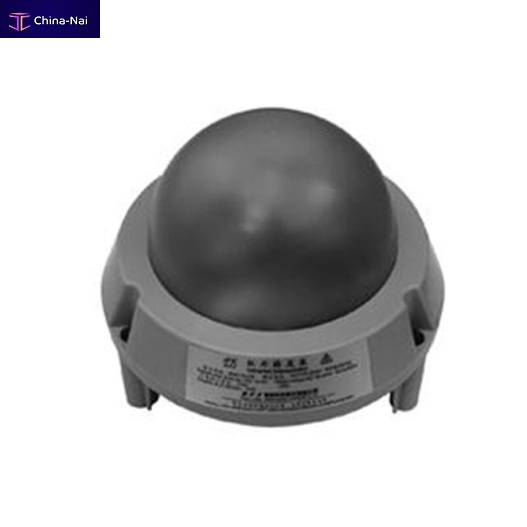

Transponder IR9110-A0

Infrared transponder is a control unit of the lighting IoT which learns and forwards infrared signal of household appliance to control infrared receiving device.

Technical data

Communication method - 802.15.4G, 802.15.4
Communication frequency - 430M Hz~450M Hz
Communication range - 500m (visible range)
Infrared remote control distance - 5~8m
Temperature detection accuracy - ±0.3
Infrared emission range - Hemispherical coverage
Memorized code - 40 groups
AC power supply - 85V AC ~ 265V AC
Power - 2~3.5W
Ambient temperature - -20 ~ 60
Ambient humidity - 5%RH ~ 95%RH
Degree of protection - IP65
Dimensions - 144(D) 115.8(H) mm
