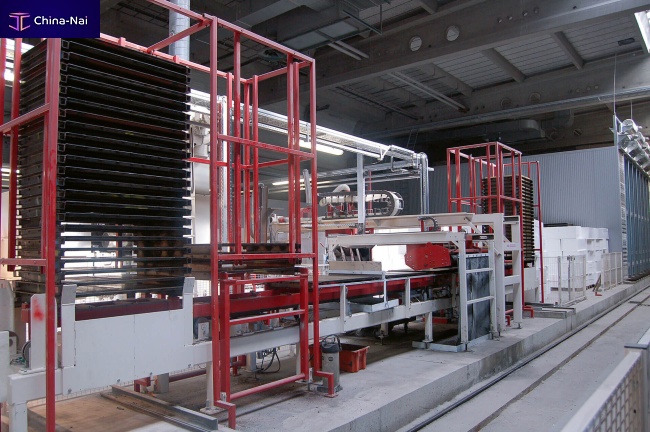

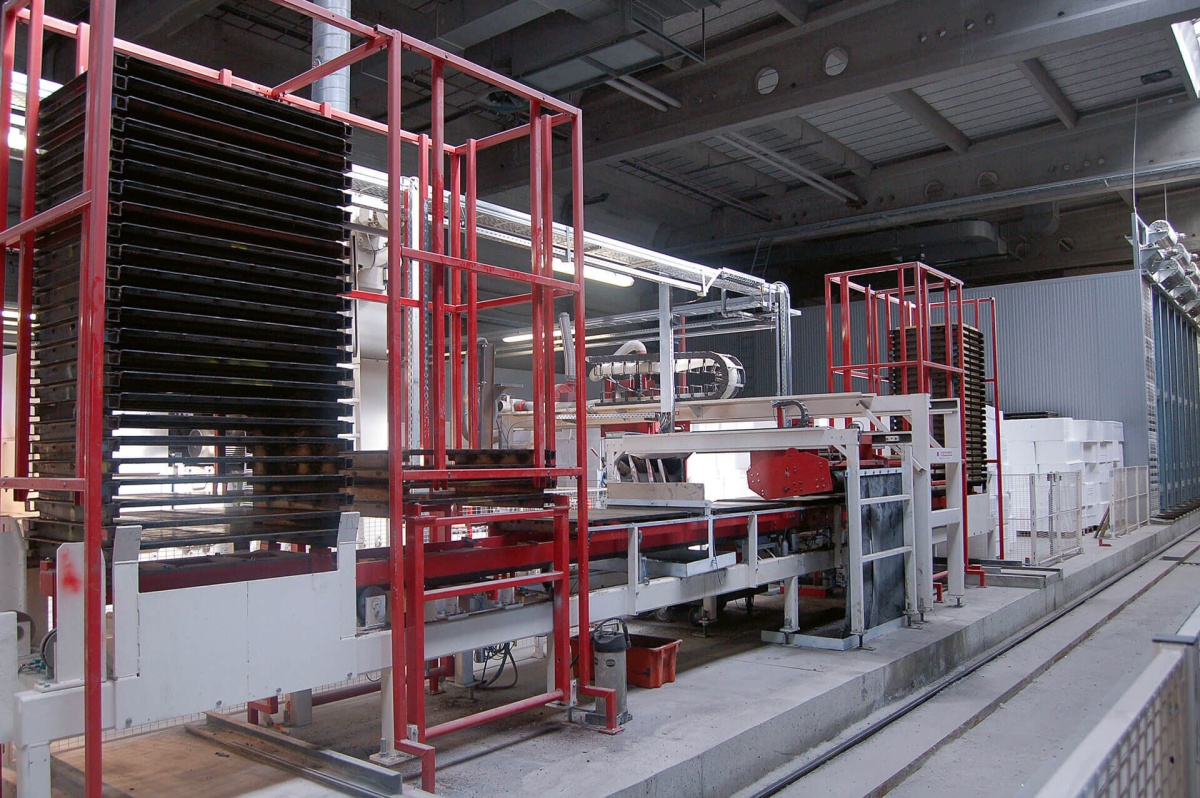

Deposition machine

Flat depositing device-wet side

Consisting of:

-Pallet tower intake (empty steel pallets) by finger car or forklift
-Pallet singulation
-Green slab depositing
-Optional direct washing of slabs via bypass or inline
-Stacking of loaded pallets
-Pallet tower take-off by finger car or forklift

All vertical, horizontal and lateral movements via servo drives, thus dynamic acceleration and freely positionable take-off and handover points. Horizontal pallet movement by walking beam conveyor system via frequency-controlled gear drive.

Flat depositing device-dry side

Consisting of:

-Pallet tower intake (loaded steel pallets) by finger car or forklift
-Pallet singulation
-Take-off of the cured slabs and handover to the value adding line or packing line
-Fully automatic pallet cleaning and pallet oiling
-Stacking of loaded or empty pallets
-Pallet tower take-off by finger car or forklift

Pallet tower movements vertically via hydraulic stroke. Galvanized steel pallets for steam treatment and vaporization in the curing chamber.
